Diver DIN 472 Circlip Internum / foramen retinens Annuli

Sinis princeps qualitas Stainless Steel DIN Wanluo 472 Circlip Internal / Hole Ringum retinens stricte fabricatur secundum signa industrialia German DIN, inserviens pro elasticis conservandis fixarorum positionis foraminis.

Mitte Inquisitionem

Product Description

Differentia ab DIN 471 circlips externa scapo fibulationis externae, Diver DIN 472 Circlip internus / Foramen retinens anulum per Wanluo officinas plumas interiorem structuram elasticam, specialiter ad clausuram et limitandam striati foraminis interiorem. Cum certa elastica expansione et soni operatione, intus praecise foraminis infixa est ut paxillos, gestus, spicula interiora et in componentibus figere, efficaciter impediat partes internas ne decidant et axiales obsessio sub vibratione et onere ictum perficiat. Aliquam compages compacta, alta praecisio et facilis conventus, vexillum nucleum clavicularium est pro constructo-in conventu mechanico et praecisione foraminis positio limitis.

Product Construction Design & Industrial Fabrication Process

472 Signa circlips foraminis internae adipiscuntur altae puritatis vere chalybem, et premium incorruptum materiae ferro, processit per integram praecisionem ac typhum, altiore exstingui et temperanti caloris curatione et fine ore torulo. Unicum internae aperturae structurae et symmetriae escendentes foramina perfecte aequant forcipes professionales circlip ad institutionem celeritatis expansionis et disassembly. Circulus exterior radians et diametri clamping praecise calibrantur ad plenam contactum et stricta apta cum norma striati foraminis interioris, evitando clamptionem solutam, offsets vel defluentia. Altioris corporis anuli crassitudo uniformis est cum duritiei ac lassitudine elastica optima resistentia, stabilis fibulationis effectus post multiplicem expansionem et diuturnum cyclicum operationem sine deformatione permanenti vel elastica defectione servans. Burr-liberum superficies lenis fossam parietis interioris diametri efficaciter tuetur et praecisionem partium aptatam a scabere et abrasione, in signis conventus mechanicis alta praecisione occurrens.

Product Parameter

Parameter Item	Detailed Specification
Product Name	472 DIN Circlip Internum, Foramen retinens Ringonem, Ringonem Internum Snap
Executive Standard	472 DIN, ISO Standard, GB Standard, Custom Non-standard Sizes
Praesto Material	304, 316L Steel, High-quality Spring Steel, Zinc-patella Carbon Steel
Magnitudo dolor	Foramen diameter φ8mm-φ100mm magnitudinum mensurarum plena, consuetudo specialis aperturae & crassitudinis
Structura Type	Internum foramen internum anulus elasticus, duplex foraminum inscensus, sulcus interioris foraminis clamping genus
Processus Technologiae	Subtilitas calcationis, curatio caloris durities, ora deburens, calibratio elastica
Lorem Object	Mechanica interiora foramina portantia foramina, cylindrica foramina et accuratius in locis sulcis constructa
Superficies Curatio	Salsum & passivum / Zinc patella / oxydatum nigrum, anti-rubrum & odii corrosio
Mechanica Properties	Stabilis elastica vis clamping, anti-lassitudo, anti laxatio, modus effectus durabilis
Methodus packaging	Humor-probatio sacculi interioris + currus exportandi, grabatum sarcina pro mole ordinum
Supple Service	Macula copia copia, non norma css

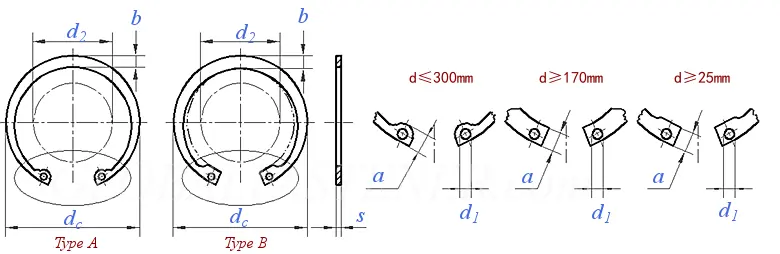

Stainless Steel Din 472 Internal Circlip Hole Retaining Ring

Nominal Diameter d^①		8	9	10	11	12	13	14	15	16	17	18	19	20	21	22
s	max	0.8	0.8	1	1	1	1	1	1	1	1	1	1	1	1	1
s	min	0.75	0.75	0.94	0.94	0.94	0.94	0.94	0.94	0.94	0.94	0.94	0.94	0.94	0.94	0.94
d_c	Nominal Size	8.7	9.8	10.8	11.8	13	14.1	15.1	16.2	17.3	18.3	19.5	20.5	21.5	22.5	23.5
	max	9.06	10.16	11.16	12.16	13.36	14.46	15.46	16.56	17.66	18.72	19.92	20.92	21.92	22.92	23.92
	min	8.6	9.7	10.7	11.7	12.9	14	15	16.1	17.2	18.17	19.37	20.37	21.37	22.37	23.37
a	max	2.4	2.5	3.2	3.3	3.4	3.6	3.7	3.7	3.8	3.9	4.1	4.1	4.2	4.2	4.2
b	≈	1.1	1.3	1.4	1.5	1.7	1.8	1.9	2.0	2.0	2.1	2.2	2.2	2.3	2.4	2.5
d₁	min	1.0	1.0	1.2	1.2	1.5	1.5	1.7	1.7	1.7	1.7	2.0	2.0	2.0	2.0	2.0
d₂		3.0	3.7	3.3	4.1	4.9	5.4	6.2	7.2	8.0	8.8	9.4	10.4	11.2	12.2	13.2
per 1000units ≈ kg		0.14	0.15	0.18	0.31	0.37	0.42	0.52	0.56	0.60	0.65	0.74	0.83	0.90	1.00	1.10

Nominal Diameter d^①		24	25	26	28	30	31	32	34	35	36	37	38	40	42	45
s	max	1.2	1.2	1.2	1.2	1.2	1.2	1.2	1.5	1.5	1.5	1.5	1.5	1.75	1.75	1.75
s	min	1.14	1.14	1.14	1.14	1.14	1.14	1.14	1.44	1.44	1.44	1.44	1.44	1.69	1.69	1.69
d_c	Nominal Size	25.9	26.9	27.9	30.1	32.1	33.4	34.4	36.5	37.8	38.8	39.8	40.8	43.5	45.5	48.5
	max	26.32	27.32	28.32	30.6	32.6	33.9	34.9	37	38.3	39.3	40.3	41.3	44.4	46.4	49.4
	min	25.69	26.69	27.69	29.85	31.85	33.15	34.15	36.25	37.55	38.55	39.55	40.55	43.11	45.11	48.11
a	max	4.4	4.5	4.7	4.8	4.8	5.2	5.4	5.4	5.4	5.4	5.5	5.5	5.8	5.9	6.2
b	≈	2.6	2.7	2.8	2.9	3.0	3.2	3.2	3.3	3.4	3.5	3.6	3.7	3.9	4.1	4.3
d₁	min	2.0	2.0	2.0	2.0	2.0	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5
d₂		14.8	15.5	16.1	17.9	19.9	20.0	20.6	22.6	23.6	24.6	25.4	26.4	27.8	29.6	32.0
per 1000units ≈ kg		1.42	1.50	1.60	1.80	2.06	2.10	2.21	3.20	3.54	3.70	3.74	3.90	4.70	5.40	6.00

Nominal Diameter d^①		47	48	50	52	55	56	58	60	62	63	65	68	70	72	75
s	max	1.75	1.75	2	2	2	2	2	2	2	2	2.5	2.5	2.5	2.5	2.5
s	min	1.69	1.69	1.93	1.93	1.93	1.93	1.93	1.93	1.93	1.93	2.43	2.43	2.43	2.43	2.43
d_c	Nominal Size	50.5	51.5	54.2	56.2	59.2	60.2	62.2	64.2	66.2	67.2	69.2	72.5	74.5	76.5	79.5
	max	51.6	52.6	55.3	57.3	60.3	61.3	63.3	65.3	67.3	68.3	70.3	73.6	75.6	77.6	80.6
	min	50.04	51.04	53.74	55.74	58.74	59.74	61.74	63.74	65.74	66.74	68.74	72.04	74.04	76.04	79.04
a	max	6.4	6.4	6.5	6.7	6.8	6.8	6.9	7.3	7.3	7.3	7.6	7.8	7.8	7.8	7.8
b	≈	4.4	4.5	4.6	4.7	5.0	5.1	5.2	5.4	5.5	5.6	5.8	6.1	6.2	6.4	6.6
d₁	min	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	3.0	3.0	3.0	3.0	3.0
d₂		33.5	34.5	36.3	37.9	40.7	41.7	43.5	44.7	46.7	47.7	49.0	51.6	53.6	55.6	58.6
per 1000units ≈ kg		6.10	6.70	7.30	8.20	8.30	8.70	10.5	11.1	11.2	12.4	14.3	16.0	16.5	18.1	18.8

Nominal Diameter d^①		78	80	82	85	88	90	92	95	98	100	102	105	108	110	112
s	max	2.5	2.5	2.5	3	3	3	3	3	3	3	4	4	4	4	4
s	min	2.43	2.43	2.43	2.92	2.92	2.92	2.92	2.92	2.92	2.92	3.9	3.9	3.9	3.9	3.9
d_c	Nominal Size	82.5	85.5	87.5	90.5	93.5	95.5	97.5	100.5	103.5	105.5	108	112	115	117	119
	max	83.8	86.8	88.8	91.8	94.8	96.8	98.8	101.8	104.8	106.8	109.3	113.3	116.3	118.3	120.3
	min	81.96	84.96	86.96	89.96	92.96	94.96	96.96	99.96	102.96	104.96	107.46	111.46	114.46	116.46	118.46
a	max	8.5	8.5	8.5	8.6	8.6	8.6	8.7	8.8	9.0	9.2	9.5	9.5	9.5	10.4	10.5
b	≈	6.8	7.0	7.0	7.2	7.4	7.6	7.8	8.1	8.3	8.4	8.5	8.7	8.9	9.0	9.1
d₁	min	3.0	3.0	3.0	3.5	3.5	3.5	3.5	3.5	3.5	3.5	3.5	3.5	3.5	3.5	3.5
d₂		60.1	62.1	64.1	66.9	69.9	71.9	73.7	76.5	79.0	80.6	82.0	85.0	88.0	88.2	90.0
per 1000units ≈ kg		20.4	22.0	24.0	25.3	28.0	31.0	32.0	35.0	37.0	38.0	55.0	56.0	60.0	64.5	72.0

Product superioritas volutpat & Cross Industry Application missiones

1. Professional foraminis clamping structura perfecte congruit cum magnitudinum sulci mensurae foraminis, vim clampingendi elasticam circumferentialem aequabilem praebens, efficaciter limitans motum axialem constructum in gestu, spiculis et clavibus partium ne partium internarum elongatio.

2. Tractatio caloris integralis stricte processus auget stabilitatem elasticam et duritiam mechanicam, ut nullum lassitudinem elasticam, relaxationem vel fracturam post diuturnum tempus vibrationis et iteratae congregationis, servato diuturno definito limite accurationem.

3. De consilio symmetrico duplex foraminis dilatatio institutionis et disgregatio cum specialibus forcipes gyrialibus sustinet, valde augens efficientiam conventus productionis et postea instrumenti conservationis commoditatem, ad magnam batch productionis industriae aptam.

4. Lappa gratuita ultra-lenis absolutio tuetur parietem interiorem et praecisionem partium congruentium ab abrasione et scalpendo, vitando conventum damnum et jitterarum apparatum, stabilis operandi structuras praecisionis mechanicae procurans.

5. Solutiones variae materiae et superficiei tractationis accommodant multiplicibus missionibus laborantibus, late adhibitis in componentibus hydraulicis pneumaticis, partium praecisione automotiva, adjumenta domestica, automationis instrumenta, et machinamenta mechanica foraminis positionis limites structurarum.

Stainless Steel Din 472 Internal Circlip Hole Retaining Ring

FAQ

Q1: Quid est principale propositum circlip DIN CDLXXII?

A1: DIN 472 circlipum foramen internum est, intus inauguratus, prae-apertis foraminibus et in foramine striati haerens. Ponitur ad figendum et limitandum constructum in gestu, spiculis et partibus cylindricis, ne axialis decidat et obsessio partium internarum.

Q2: Key differentiae inter DIN 472 et DIN 471?

A2: DIN 471 circlip externus est pro scapo exteriore cum foramine exteriore clainationis; 472 DIN circlip internus est foraminis clamitatio interior cum foramen interna. Duae partes accentus structurales oppositas habent et omnino non convertuntur, cum scaporum et foraminis limitem fasteners integram constituunt.

Q3: DIN 472 circlip num facile est deformare durante institutione?

A3: No. Nostra products adoptare professionalem vere ferro duritiem curatio fortis duritiem et rigiditatem. Vexillum instrumentum expansionis institutionis deformatio permanentem non faciet, et circlip cito resilire potest ad magnitudinem ob stricta clamping.

Q4: Quaenam missiones aptae sunt DIN 472?

A4: Late convenit omnibus missionibus limitibus constructis in cavernis, ut valvae hydraulicae foramina, motoria perforata, instrumenta foraminum conventus, partes cylindricae, instrumenti subtilitatis foramina et automatae mechanicae interioris cavitatis fixio structurarum.

Q5: Can nativus circuli foraminis non-vexilli provideri potest?

A5: Sic. Nos sustinemus customizationem specialem diametri interioris et exterioris, crassitudinis, sulci congruens magnitudinis et altae superficiei curationis anti-corrosionis ad occursum personale limitis requisitorum specialium positionum mechanicarum foraminis.
