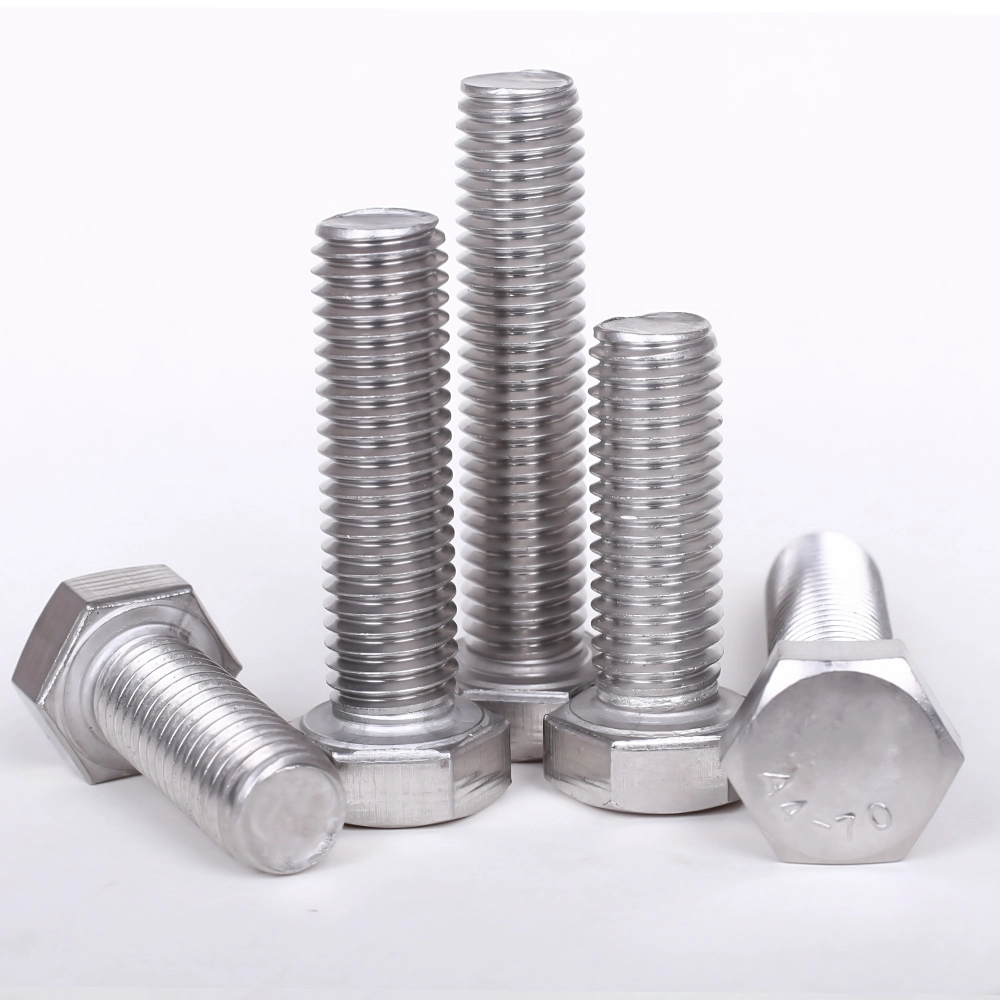

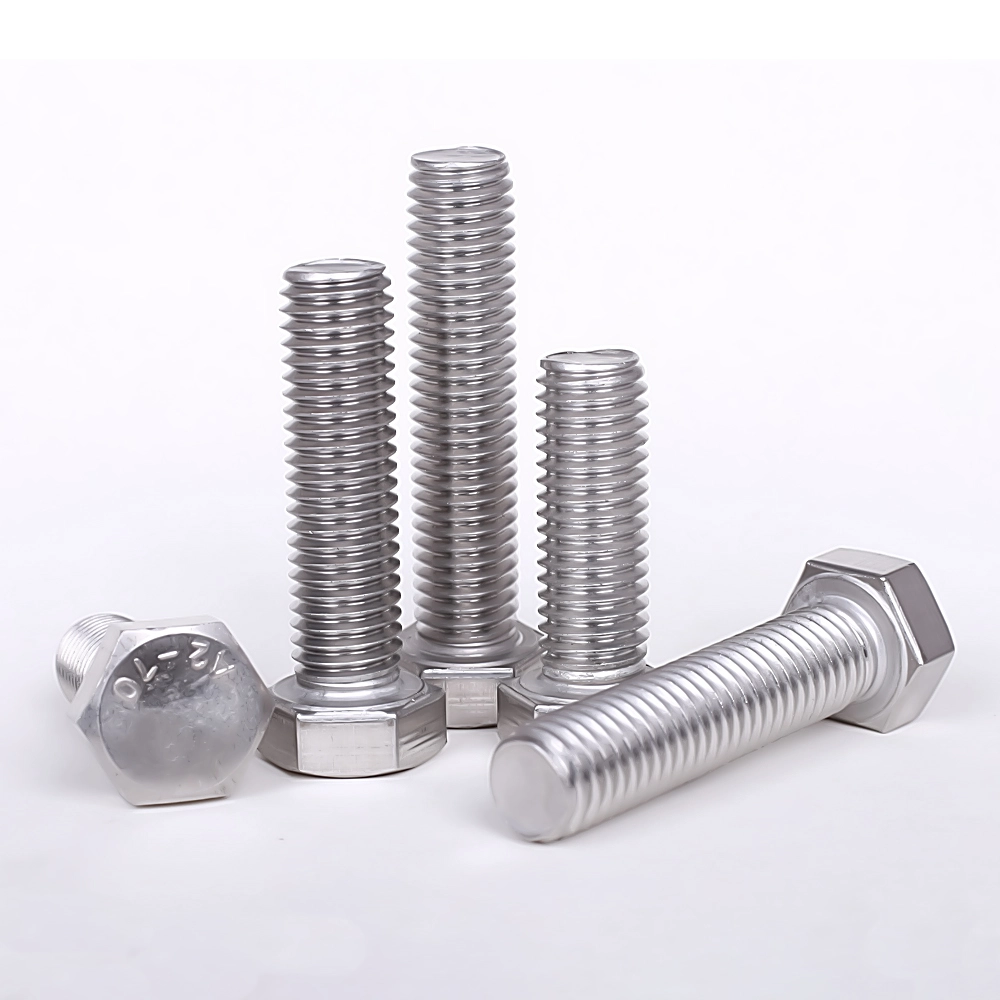

Hex Head Bolt DIN 933 Full Thread

Sub notam Wanluo fabricamus summus vexillum Hex Capitis Bolt DIN 933 Plenum filum quod DIN, ANSI et GB specificationes internationales efficiunt. Adoptantes frigus maturam fabricandi technologiam et quali- tatem in domo propria, hae clausurae capitis fulmina efficiunt stabilitatem mechanicam faciendam, tolerantiam accuratam dimensivam et aptabilitatem environmental validam, diversae industriae et civiles machinationes missiones aptae. Vexilliferum maculam sustinemus tutus, non-commodus csscationis et mole procurationis operas ad global emptores necessitates procurationis occurrendas.

Mitte Inquisitionem

Product Description

Wanluo officinarum Sinarum Hex Head Bolt DIN 933 Filum plenum filum est summus vexillum universale defixae producti late in campis machinalibus industrialibus et civilibus globalis adhibitis. Adoptare perfectum technologiam technologiam productionis et signa inspectionis strictae qualitas, hoc plenum filum hex capitis fulmen notae mechanicae stabilis effectio, tolerantia dimensiva accurata et aptabilitas environmental egregia.

Nostra opera

Praesto in completo norma et specificationibus nativus, caput nostrum hei fulmen ad varias ligaturas postulandas occurrere potest ab usu cotidiano conventionali ad summum corrosionem, inceptis machinalis viribus summus. Praecepta iudicii specimen sustinemus, restock ac mole plena continentis copiam, sumptus efficaces et durabiles solutiones ementium globalium tradens.

Product Parameter

Parameter Item	Detailed Specification
Product Name	A2-70 Hex Head, DIN 933 Full Thread
Executive Standard	DIN 933 (Full Thread), Libitum ISO 4017, ANSI, GB Standard
Praesto Material	In Stock: 304 (A2-70), 316 (A4-80), 316L; Customizable: 904L, 310S, 2205, 2507 Duplex Steel; Carbon Steel 4.8/8.8/10.9 Available Supple
In Stock Size dolor	Metric M3-M36 conventionales plenae magnitudinum sequelae, longitudinis non-vexillae et stamina picis support OEM css
Post Type	Vexillum metricum vile stamen, bysso linum customisable upon mole order requirements
Superficies Curatio	Electra et passio (vexillum), electropolisica, clara meta ad speciales missiones
Mechanica Properties	A2-70: tensile robur ≥700MPa, cede robur ≥450MPa; Gradus carbonis ferro obtemperare cum signis industrialibus nationalibus correspondentibus
Methodus packaging	Interior plastic pera + exportatio currus, grabatus packaging pro pleno vase sit amet, titulus privatus OEM packaging support
Supple Service	Macula Lupum, mole css

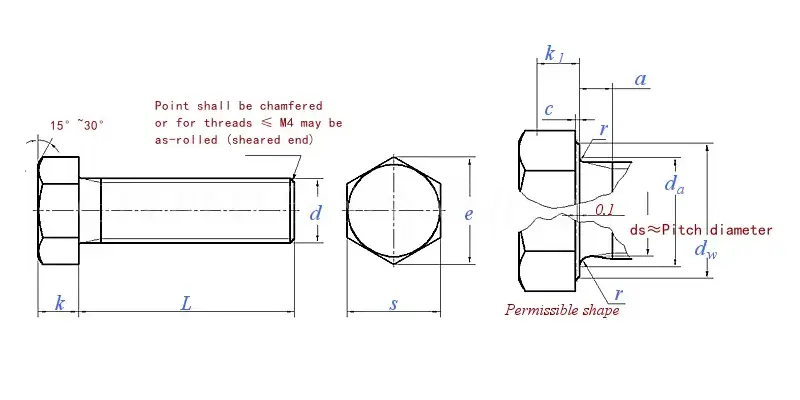

Hex Head Bolt Din 933 Full Thread

stupra Thread d		M1.6	M2	M2.5	M3	(M3.5)	M4	M5	M6	(M7)	M8	M10	M12	(M14)	M16
P	Pix	0.35	0.4	0.45	0.5	0.6	0.7	0.8	1	1	1.25	1.5	1.75	2	2
a	max	1.05	1.2	1.35	1.5	1.8	2.1	2.4	3	3	3.75	4.5	5.25	6	6
c	min	0.1	0.1	0.1	0.15	0.15	0.15	0.15	0.15	0.15	0.15	0.15	0.15	0.15	0.2
c	max	0.25	0.25	0.25	0.4	0.4	0.4	0.5	0.5	0.5	0.6	0.6	0.6	0.6	0.8
d_a	max	2	2.6	3.1	3.6	4.1	4.7	5.7	6.8	7.8	9.2	11.2	13.7	15.7	17.7
d_w	Gradus A min	2.4	3.2	4.1	4.6	5.1	5.9	6.9	8.9	9.6	11.6	15.6	17.4	20.5	22.5
d_w	Gradus B min	-	-	-	-	-	5.7	6.7	8.7	9.4	11.4	15.4	17.2	20.1	22
e	Gradus A min	3.41	4.32	5.45	6.01	6.58	7.66	8.79	11.05	12.12	14.38	18.9	21.1	24.49	26.75
e	Gradus B min	-	-	-	-	-	7.5	8.63	10.89	11.94	14.2	18.72	20.88	23.91	26.17
k	Nominal Size	1.1	1.4	1.7	2	2.4	2.8	3.5	4	4.8	5.3	6.4	7.5	8.8	10
	Gradus A min	0.98	1.28	1.58	1.88	2.28	2.68	3.35	3.85	4.65	5.15	6.22	7.32	8.62	9.82
	Gradus A max	1.22	1.52	1.82	2.12	2.52	2.92	3.65	4.15	4.95	5.45	6.56	7.68	8.98	10.18
	Gradus B min	-	-	-	-	-	2.6	3.26	3.76	4.56	5.06	6.11	7.21	8.51	9.71
	Gradus B max	-	-	-	-	-	3	3.74	4.24	5.04	5.54	6.69	7.79	9.09	10.29
k₁	min	0.7	0.9	1.1	1.3	1.6	1.9	2.28	2.63	3.19	3.54	4.28	5.05	5.96	6.8
r	min	0.1	0.1	0.1	0.1	0.1	0.2	0.2	0.25	0.25	0.4	0.4	0.6	0.6	0.6
s	max = nominis magnitudine	3.2	4	5	5.5	6	7	8	10	11	13	17	19	22	24
	Gradus A min	3.02	3.82	4.82	5.32	5.82	6.78	7.78	9.78	10.73	12.73	16.73	18.67	21.67	23.67
	Gradus B min	-	-	-	-	-	6.64	7.64	9.64	10.57	12.57	16.57	18.48	21.16	23.16

stupra Thread d		(M18)	M20	(M22)	M24	(M27)	M30	(M33)	M36	(M39)	M42	(M45)	M48	(M52)
P	Pix	2.5	2.5	2.5	3	3	3.5	3.5	4	4	4.5	4.5	5	5
a	max	7.5	7.5	7.5	9	9	10.5	10.5	12	12	13.5	13.5	15	15
c	min	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.3	0.3	0.3	0.3	0.3
c	max	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	1	1	1	1	1
d_a	max	20.2	22.4	24.4	26.4	30.4	33.4	36.4	39.4	42.4	45.6	48.6	52.6	56.6
d_w	Gradus A min	25.3	28.2	30	33.6	-	-	-	-	-	-	-	-	-
d_w	Gradus B min	24.8	27.7	29.5	33.2	38	42.7	46.5	51.1	55.9	59.9	64.7	69.4	74.2
e	Gradus A min	30.14	33.53	35.72	39.98	-	-	-	-	-	-	-	-	-
e	Gradus B min	29.56	32.95	35.03	39.55	45.2	50.85	55.37	60.79	66.44	71.3	76.95	82.6	88.25
k	Nominal Size	11.5	12.5	14	15	17	18.7	21	22.5	25	26	28	30	33
	Gradus A min	11.28	12.28	13.78	14.78	-	-	-	-	-	-	-	-	-
	Gradus A max	11.72	12.72	14.22	15.22	-	-	-	-	-	-	-	-	-
	Gradus B min	11.15	12.15	13.65	14.65	16.65	18.28	20.58	22.08	24.58	25.58	27.58	29.58	32.5
	Gradus B max	11.85	12.85	14.35	15.35	17.35	19.12	21.42	22.92	25.42	26.42	28.42	30.42	33.5
k₁	min	7.8	8.5	9.6	10.3	11.7	12.8	14.4	15.5	17.2	17.9	19.3	20.9	22.8
r	min	0.6	0.8	0.8	0.8	1	1	1	1	1	1.2	1.2	1.6	1.6
s	max = nominis magnitudine	27	30	32	36	41	46	50	55	60	65	70	75	80
	Gradus A min	26.67	29.67	31.61	35.38	-	-	-	-	-	-	-	-	-
	Gradus B min	26.15	29.16	31	35	40	45	49	53.8	58.8	63.1	68.1	73.1	78.1

Product Feature Et Application

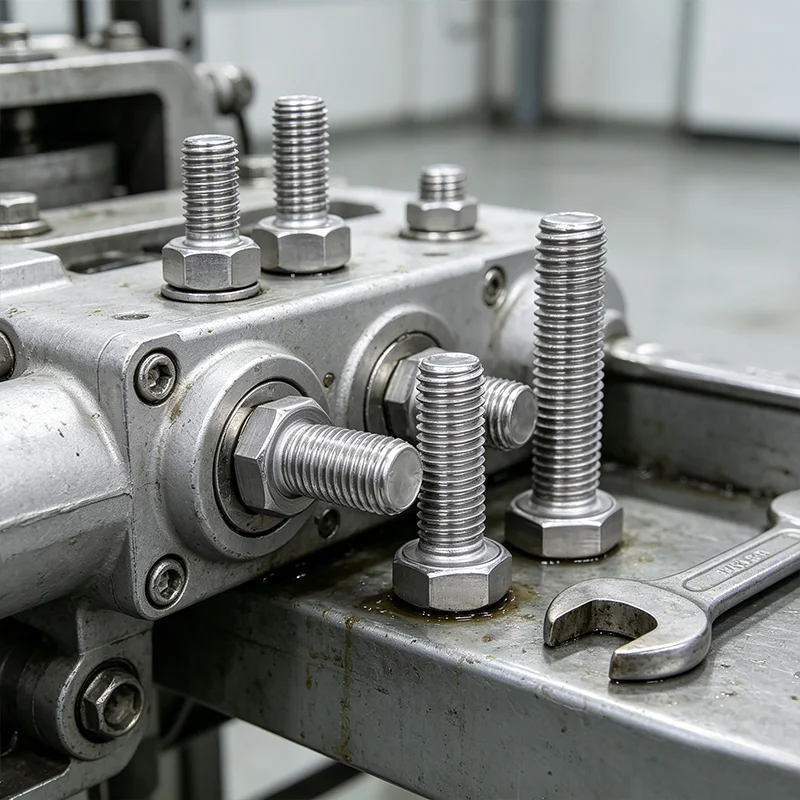

Adoptans integram frigidam fabricandi fingens, hoc Hex Caput Bolt DIN 933 Plena lineamenta lineamenta structurae internae compactae, altae vires distrahentes et praevalentes effectus anti-deformationes, stabilia fixa sub diuturno vibratione et gravia onera pro congregatione mechanica et institutionibus machinalibus civilibus praestandi.

Subtilitas stamina volubilis et CNC peractio efficit tolerantiam strictam tolerantiae et stamina vexillum lenis, ut stricta convenientia et iterata disconvenientia sine dentium lapsu ad praecisionem electricum, pipelinum et mechanicam fixionem missionum efficiant.

Sera multi-gradus incorrupta ferro se producta liberant superiorem rubiginem et corrosionem resistentiam pro ambitus maritimis et marinis, dum in promptu sunt optiones carbonis chalybeis, impensas sumptus efficaces praebent pro inceptis technicis tectis siccis.

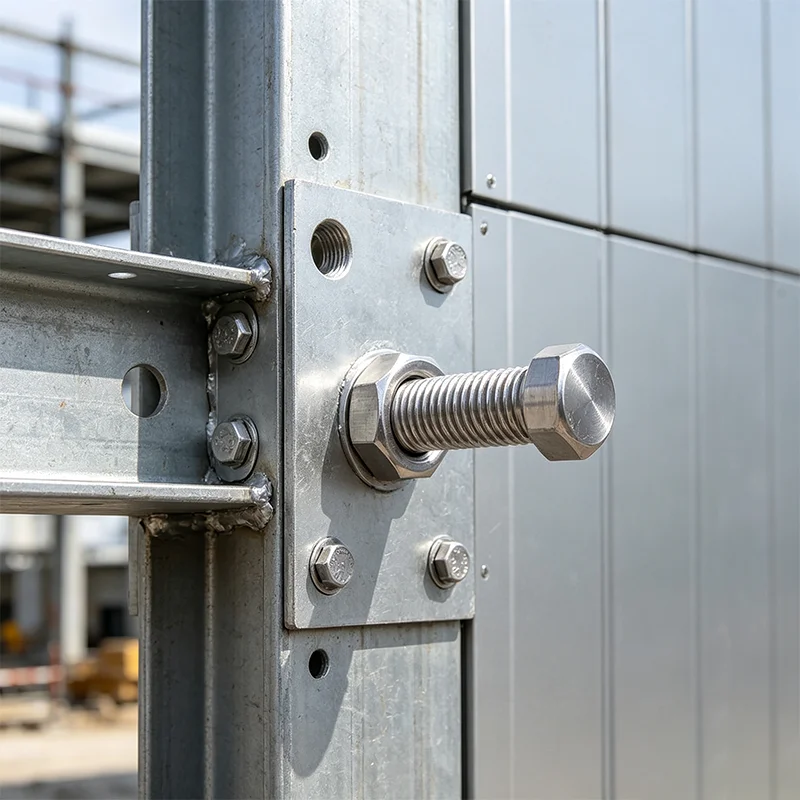

Saltatio et passivatio professionalis curatio lenis, lappa libera et scabie liberae superficiei optimae tempestatis resistit, efficaciter dilatans vitam servitutis fulminum ad usum foris supellectilis et landscape facilitatem fixationis.

Haec signatio plena internationalis speciei ac magnitudinum non normarum customizabilis, hoc Hex Capitis Bolt DIN 933 Plena sequela cum copia instrumenti satis universalis et certae solutionis ligaturae pro global industriae et constructionis inceptis inservit.
